Naval Aviation Lighting
Overview
The Superstructure and Hangar Outline Lights are designed to provide the approaching pilot with a clear visual reference as to the limits of the hangar and/or structure.
ABOUT

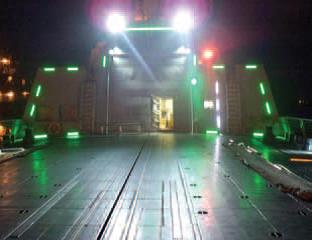

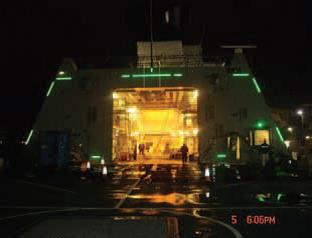

SUPERSTRUCTURE/HANGAR OUTLINE LIGHTS are designed to provide the approaching pilot with a clear reference as to the limits of the Superstructure and/or Hangar structure.
The FORWARD LINE UP LIGHTS are typically positioned in forward positions on the ship such as the superstructure in order to give the pilot further visual cues to line up their final approach over the flight deck.
These fully sealed lights are available in a 0.6 metre length, with a clear polycarbonate body, flying lead and having the LED PCB’s potted within the enclosure to ensure the unit is a fully sealed one piece light. The lights also feature ramped edges and a non-slip finish to the surface.
KEY FEATURES
- Suitable for both aided (NVG) and unaided use
- Low Power Consumption
- Long Life LED light sources – typically 100,000 hours
COMPLIANCE
EMC – MIL STD 461E
Shock – MIL STD 901D Grade B
Vibration – MIL STD 167A-1
Environmental – MIL STD 810
APPLICABLE DESIGN & MANUFACTURING STANDARDS
- STANAG 1445
- DEF STAN 02-587 Part 3
- HOSTAC Vol 1 limits
- Radar Cross Section (RCS) Requirements
- BS EN 60439-2
- BS EN 60947-1
- BS EN 60529
- DEF-STAN 05-21
- ISO 9001
Gallery
Downloads
AGI VISUAL LANDING AIDS BROCHUREVisual Approach System brochure
|
