PID / PIL
Pilot Information Display / Pilot Information Light / StopGo
Pilot Information Systems use the latest LED technology to display signals by means of colours and symbols to inform the pilot that it is safe to undertake take-off or landing operations. These systems can be controlled from the Flight Deck Office.

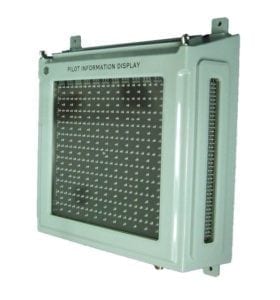

The PILOT INFORMATION DISPLAY System is a tri-colour light system, used to inform the Pilot through colours and symbols that it is safe for him to undertake his take-off or landing. The use of LED technology contributes to greater light output, improved reliability and enables different shapes to be displayed.
The unit can also be used in a Wave Off Light capacity with the red LEDs being set to flash in wave off situations.

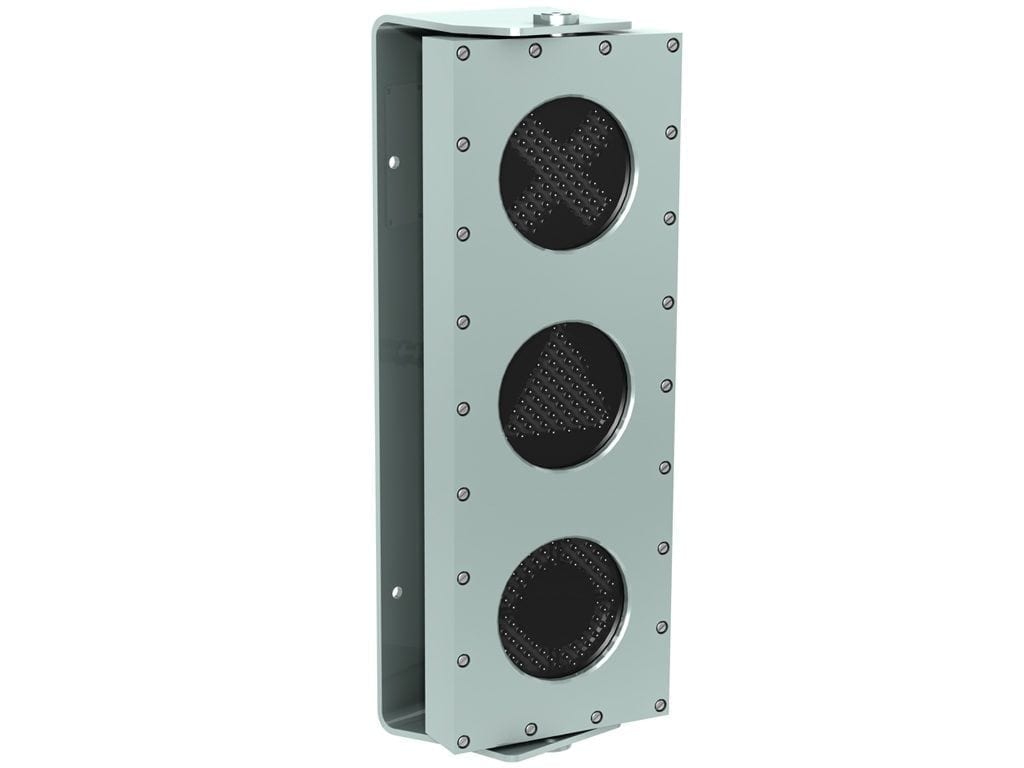

The PILOT INFORMATION LIGHT System is a tri-colour traffic light system, used to inform the Pilot that it is safe for them to undertake their take-off or landing. The use of LED technology contributes to greater light output, improved reliability and enables different shapes to be displayed.

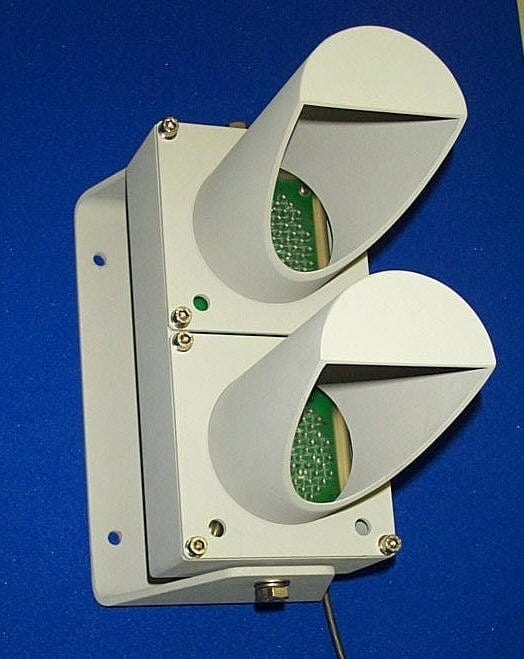

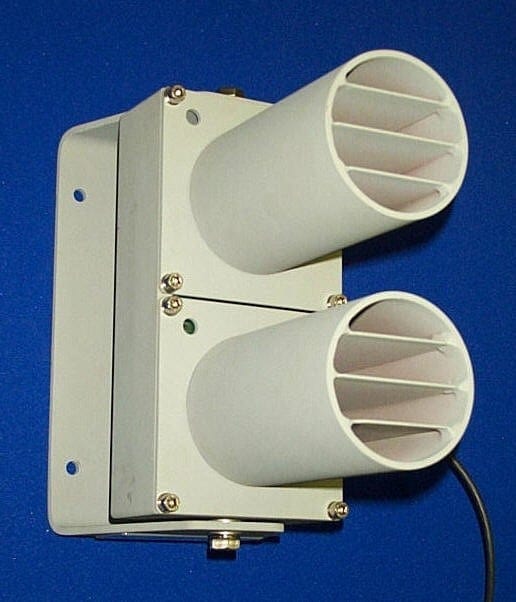

The DECK STATUS LIGHT (STOP GO) will comprise a fabricated aluminium housing, with optional lens hoods, and red and green NVIS LED light sources.
- Suitable for both aided (NVG) and unaided use
- Low Power Consumption
- Long Life LED light sources – typically 100,000 hours
EMC – MIL STD 461E
Shock – MIL STD 901D Grade B
Vibration – MIL STD 167A-1
Environmental – MIL STD 810
APPLICABLE DESIGN & MANUFACTURING STANDARDS
- STANAG 1445
- DEF STAN 02-587 Part 3
- HOSTAC Vol 1 limits
- Radar Cross Section (RCS) Requirements
- BS EN 60439-2
- BS EN 60947-1
- BS EN 60529
- DEF-STAN 05-21
- ISO 9001
